Swift M3602-3
Introducing a new look to the flagship model of the Swift Optical education line. The Swift M3600 Series continues the Swift tradition for innovation, quality and student-proof features, and updates our well-known M3500 classic model series with a brand new look and design. Built-in handle, variable LED illumination and lead-free objectives are just some of the state-of-the-art features that makes this series in a class of its own. Ideal for high school students and advanced grade levels.

OPTICAL SYSTEM
  • Widefield 10x /18mm eyepiece.
  • Monocular viewing head with 45° inclined eyepiece.
  • DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.) and 40xR (0.65 N.A.) achromat objectives. All are parfocalled, parcentered and color-coded.
  • Three-hole nose piece is ball-bearing mounted for smooth, precise positioning of objectives. Mounted in reverse position to facilitate ease in changing slides.

ILLUMINATION
  • Variable LED light provides bright, white illumination.
  • LED technology provides cool, energy-efficient light for up to 50,000 hours.

ELECTRICAL
  • 110V power supply, unit shipped with American plug.

FOCUSING
  • Low position coarse and fine focusing controls.
  • Stage moves up or down, eyepiece and body remain fixed.
  • Slip clutch prevents damage to focusing system.
  • Tension adjustment eliminates stage drift.
  • Safety rack stop prevents damage to slides and objective lenses.



STAGE
  • Large 5-3/4 in. x 4-3/4 in. (143mm x 120mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls.
  • Built-in 1.25 Abbe condenser has iris diaphragm.

FRAME
  • Cord hangers.
  • Base dimensions: 9-1/4 in. x 6 in. (235mm x 151mm)
  • Height: 14-1/4 in. (362mm). Net wt. 9.8 lbs (21.6 kgs).



PACKING
  • Head and frame in molded styrofoam container with instruction brochure and vinyl dustcover.
  • Individual: Ship wt. 15 lbs (6.8 kgs), Dimensions 23x17x11 in. (58x43x28 cm.)
  • Master carton pack 2 each: Ship wt. 46 lbs (20.9 kgs), Dimensions 22x18x19 in. (46x46x48 cm.)

WARRANTY
  • Lifetime limited warranty, excluding bulb, cord, and fuse.



PrintPrinter Friendly View

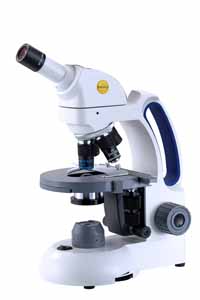

Swift M3602-3 Picture

Product Number Description MSRP 1-9 Units 10+ Units
M3602-3

Introducing a new look to the flagship model of the Swift Optical education line. The Swift M3600 Series continues the Swift tradition for innovation, quality and student-proof features.

$457.00 $409.00 $389.00
Additional Product Options
Product Number Description MSRP 1-9 Units 10+ Units
M3601 With Stage Clips $399.00 $359.00 $339.00
M3602-4 Adds Oil Immersion $520.00 $469.00 $439.00
