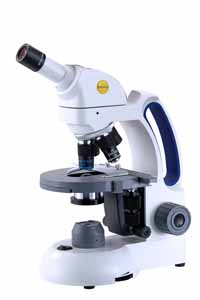

Swift M3602-4
|
Introducing a new look to the flagship model of the Swift Optical education line. The Swift M3600 Series continues the Swift tradition for innovation, quality and student-proof features, and updates our well-known M3500 classic model series with a brand new look and design. Built-in handle, built-in mechanical stage, variable LED illumination are just some of the state-of-the-art features that makes this series in a class of its own. Ideal for high school students and advanced grade levels.
OPTICAL SYSTEM
- Widefield 10x /18mm eyepiece.
- Monocular viewing head with 45° inclined eyepieces.
- DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR (1.25 N.A.) achromat objectives. All are parfocalled, parcentered and color-coded.
- Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives. Mounted in reverse position to facilitate ease in changing slides.
ILLUMINATION
- Variable LED light provides bright, white illumination.
- LED technology provides cool, energy-efficient light for up to 50,000 hours.
ELECTRICAL
- 110V power supply, unit shipped with American plug.
FOCUSING
- Low position coarse and fine focusing controls.
- Stage moves up or down, eyepiece and body remain fixed.
- Slip clutch prevents damage to focusing system.
- Tension adjustment eliminates stage drift.
- Safety rack stop prevents damage to slides and objective lenses.
STAGE
- Large 5-3/4 in. x 4-3/4 in. (143mm x 120mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls.
- Built-in 1.25 Abbe condenser has iris diaphragm.
FRAME
- Cord hangers.
- Base dimensions: 9-1/4 in. x 6 in. (235mm x 151mm)
- Height: 14-1/4 in. (362mm). Net wt. 10.8 lbs (23.8 kgs).
PACKING
- Head and frame in molded styrofoam container with instruction brochure and vinyl dustcover.
- Individual: Ship wt. 15 lbs (6.8 kgs), Dimensions 23x17x11 in. (58x43x28 cm.)
- Master carton pack 2 each: Ship wt. 46 lbs (20.9 kgs), Dimensions 22x18x19 in. (46x46x48 cm.)
WARRANTY
- Lifetime limited warranty, excluding bulb, cord, and fuse.
Printer Friendly View |
 |
| Product Number |
Description |
MSRP |
1-9 Units |
10+ Units |
| M3602-4 |
Introducing a new look to the flagship model of the Swift Optical education line. The Swift M3600 Series continues the Swift tradition for innovation, quality and student-proof features. |
$520.00 |
$469.00 |
$449.00 |
|
|
|
|
|
| |
