Swift M3602-C3
Introducing a new look to the flagship model of the Swift Optical education line. The Swift M3600C Series continues the Swift tradition for innovation, now available in a rechargeable, cordless model. Built-in handle, built-in mechanical stage, variable LED illumination are just some of the state-of-the-art features that makes this series in a class of its own. Ideal for high school students and advanced grade levels.

OPTICAL SYSTEM
  • Widefield 10x /18mm eyepiece.
  • Monocular viewing head with 45° inclined eyepiece.
  • DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.) and 40xR (0.65 N.A.) achromat objectives. All are parfocalled, parcentered and color-coded.
  • Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives. Mounted in reverse position to facilitate ease in changing slides.

ILLUMINATION
  • LED light rated up to 50,000 hours of life, illumination equal to a 20 watt tungsten bulb.
  • Batteries allow up to 500 recharges, for a total of 20,000 to 25,000 hours use from a single set of 3 AA rechargeable nickel hydride batteries. Battery charger included with microscope, automatically shuts off when batteries are fully charged, no danger of overcharging batteries and shortening battery life. No expensive recharger station needed/ Plug directly into wall outlet, or use ordinary, inexpensive power strip for recharging multiple microscopes. Indicator light changes from red to green when fully charged.
  • Single 8 hour charge allows up to 50 hours of use.

ELECTRICAL
  • 110V - 220V switching power supply, unit shipped with American plug.

FOCUSING
  • Low position coarse and fine focusing controls.
  • Stage moves up or down, eyepiece and body remain fixed.
  • Slip clutch prevents damage to focusing system.
  • Tension adjustment eliminates stage drift.
  • Safety rack stop prevents damage to slides and objective lenses.

STAGE
  • Large 5-3/4 in. x 4-3/4 in. (143mm x 120mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls.
  • Built-in 1.25 Abbe condenser has iris diaphragm.



FRAME
  • Base dimensions: 9-1/4 in. x 6 in. (235mm x 151mm)
  • Height: 14-1/4 in. (362mm). Net wt. 10.8 lbs (23.8 kgs).

PACKING
  • Head and frame in molded styrofoam container with instruction brochure and vinyl dustcover.
  • Individual: Ship wt. 15 lbs (6.8 kgs), Dimensions 23x17x11 in. (58x43x28 cm.)
  • Master carton pack 2 each: Ship wt. 46 lbs (20.9 kgs), Dimensions 22x18x19 in. (46x46x48 cm.)

WARRANTY
  • Lifetime limited warranty, excluding bulb, cord, and fuse.



PrintPrinter Friendly View

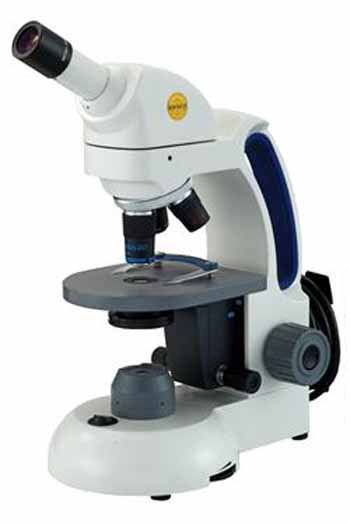

Swift M3602-C3 Picture

Product Number Description MSRP 1-9 Units 10+ Units
M3602-C3

Introducing a new look to the flagship model of the Swift Optical education line. The Swift M3600C Series continues the Swift tradition for innovation, now available in a rechargeable, cordless model.

$467.00 $419.00 $399.00
Additional Product Options
Product Number Description MSRP 1-9 Units 10+ Units
M3601-C With Stage Clips $409.00 $369.00 $349.00
M3602-C4 Adds Oil Immersion $524.00 $469.00 $449.00
