Specifications

Introducing National Optical & Scientific Instruments' new line of digital compound microscopes with detachable 8" LCD tablet! The BTW1-213-RLED features high speed, full-resolution imaging technology built into some of our most popular microscopes. This WiFi digital tablet transmits live images to iOS or Android devices. Use it as a conventional microscope or share live images with colleagues using WiFi tablets, wireless laptops, and HD-ready LCD monitors/projectors through HDMI. Tablet includes preloaded Motic apps. Connect, view, and share images easily and affordably with the BTW1-213-RLED.

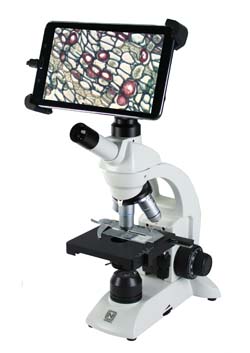

*Note: Pictured is BTW1-214-RLED

OPTICAL SYSTEM

• Widefield 10x eyepiece with pointer. Accepts optional #965-160 eyepiece reticle.
• 45° inclined monocular viewing head rotates 360° for easy sharing by more than one student.
• DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), and 40xR (0.65 N.A.) objectives. All are achromatic, parfocalled, parcentered and color-coded.
• 4-hole objective turret, reverse position, ball-bearing mounted for smooth, precise changes in magnification.

ILLUMINATION

• LED light rated up to 50,000 hours life, illumination equal to a 20 watt tungsten bulb.
• Batteries allow up to 500 recharges, for a total of 20,000 to 25,000 hours use from a single set of 3 AA rechargeable nickel hydride batteries. Battery charger included with microscope, automatically shuts off when batteries are fully charged - no danger of overcharging batteries and shortening battery life. No expensive recharger station needed. Plug directly into wall outlet, or use ordinary, inexpensive power strip for recharging multiple microscopes. Indicator light changes from red to green when fully charged.
• Single 8 hour charge allows up to 50 hours of use.
• Rheostat intensity control

FOCUSING

• Coaxial focusing controls.
• Stage moves up or down, eyepiece and body remain fixed.
• Slip clutch prevents damage to focusing system.
• Tension adjustment eliminates stage drift.
• Safety rack stop prevents damage to slides and objective lenses.

STAGE

• Large 135mm x 135mm (5 1/4 in. x 5 1/4 in.) stage, with professional quality, low profile mechanical specimen holder with low-position coaxial x-y controls.
• 1.25 N.A. Abbe condenser with spiral focusing mount, iris diaphragm, swing-out filter holder, blue filter supplied.

FRAME

• Rugged cast metal, gray enamel finish.
• Base dimensions: Not Available
• Height: Not Available
• Net wt. Not Available

TABLET

PACKING

• Molded styrofoam container with instruction brochure and vinyl dustcover.
